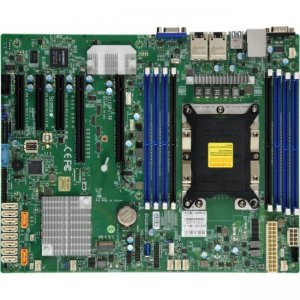

Supermicro Server Motherboard MBD-X11SPI-TF-B X11SPI-TF

Supermicro Server Motherboard MBD-X11SPI-TF-B X11SPI-TF
Price $638.52
Manufacturer: Supermicro
Mfg Number: MBD-X11SPI-TF-B
Model: X11SPI-TF
Condition: New
UPC: 672042265367
UP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.
Audio Channels 7.1
Total Number of USB Ports 4
Number of USB 3.0 Ports 2
Product Type Server Motherboard
Manufacturer Part Number MBD-X11SPI-TF-B
Manufacturer Website Address http://www.supermicro.com
Packaged Quantity 1
Manufacturer Supermicro Computer, Inc
Product Model X11SPI-TF
Product Name X11SPI-TF Server Motherboard
Package Type Bulk
Brand Name Supermicro
Number of Total Expansion Slots 5
Number of PCI Express x4 Slots 1
Number of PCI Express x8 Slots 2
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 5
Maximum Memory Supported 1 TB
Memory Technology DDR4 SDRAM
Number of Memory Slots 8
Memory Form Factor RDIMM DIMM LRDIMM
Memory Speed Supported 2666 MHz 2400 MHz 2133 MHz 1866 MHz 1600 MHz


  • SC813MFTQC-350CB2
  • SC813MFTQC-R407CB
  • SC113MFAC2-341CB
  • SC113MFAC2-R606CB
  • SC512F-350B
  • SC823TQ-653LPB
  • SC213LT-600LPB
  • SC825TQC-R740LPB
  • SC833T-653B

  • SYS-5019P-MT
10Gigabit Ethernet Yes
Form Factor ATX
Width 12"
Depth 9.6"
Processor Supported Xeon
Total Processor Supported 1
Processor Socket Socket P LGA-3647
Chipset Manufacturer Intel
Chipset Model C622
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
Onboard Video On-board Video Chipset
RAID Levels 10 5 1 0
Controller Type Serial ATA/600
RAID Supported Yes
Number of SATA Interfaces 10
Total Number of Onboard USB Ports 7
Number of Onboard USB 3.0 Ports 3
Number of M.2 Interfaces 1
