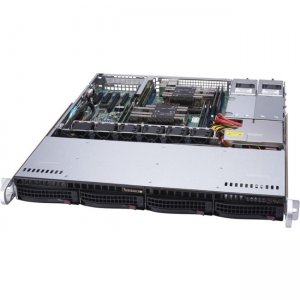

Supermicro SuperServer (Black) SYS-6017R-M7UF-BULK 6017R-M7UF

Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon® processor E5-2600 or E5-2600 v2 family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

Number of SATA Interfaces	6
Number of SAS Interfaces	8
Total Number of USB Ports	7
Controller Type	Serial ATA/600 Serial ATA/300 6Gb/s SAS
RAID Supported	Yes
Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200eW
Product Type	Barebone System
Manufacturer Part Number	SYS-6017R-M7UF-BULK
Manufacturer Website Address	http://www.supermicro.com
Packaged Quantity	10
Manufacturer	Supermicro Computer, Inc
Product Model	6017R-M7UF
Product Name	SuperServer 6017R-M7UF (Black)
Package Type	Bulk
Product Line	SuperServer
Brand Name	Supermicro
Number of Total Expansion Bays	4
Number of 3.5" Bays	4
Number of Total Expansion Slots	1
Number of PCI Express x8 Slots	1
Maximum Memory Supported	512 GB
Memory Technology	DDR3 SDRAM
Memory Standard	DDR3-1866/PC3-15000
Number of Total Memory Slots	8
Package Contents	SuperServer 6017R-M7UF (Black) 1x Super X9DRL-7F Motherboard 1x 1U Chassis 1x 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD 1x 8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE 1x SATA SET OF 4-56/45.5/35/23CM ROUND S-RA 1x RSC-RR1U-E8 2x 1U Passive Custom CPU Heat Sink for X9DRL, X10DRL Related Systems
Environmentally Friendly	Yes
Environmental Certification	RoHS
Ethernet Technology	Fast Ethernet Gigabit Ethernet
Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.2"
Depth	19.8"
Product Color	Black
Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	400 W
Limited Warranty	3 Year
Processor Supported	Xeon
Processor Socket	Socket R LGA-2011
64-bit Processing	Yes
Number of Processors Supported	2
Chipset Manufacturer	Intel
Chipset Model	C602J
