Description

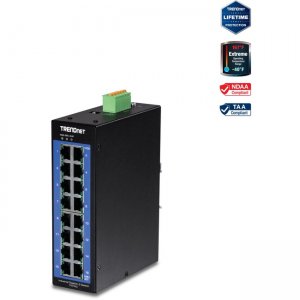

16 x Gigabit ports, 32Gbps switching capacity Hardened IP30 rated metal housing, includes DIN-rail mounting bracket, power supply sold separately (models: TI-M6024, ti-s12024, TI-S12048, TI-S24048) Operating temperature range of -40° - 75° C (-40° - 167° F) Supports LACP, STP/RSTP, VLAN, and IGMP, IEEE 802. 1P QoS with Queue scheduling support Bandwidth control per port, redundant power inputs with overload current protection, alarm output triggered by Power failure TRENDnet Lifetime protection: All metal TRENDnet switches are backed by our lifetime TRENDnet manufacturer Protection NDAA / TAA compliant (U.S. and Canada only) TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. Shock and Vibration Resistant The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6). Integration Flexibility Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration. Industrial Design Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° - 75° C (-40° - 167° F). Traffic Management A broad range of network configurations are supported by: 802. 3ad link aggregation, Private VLAN, 802. 1Q VLAN, RTSP, Loopback Detection, 802. 1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling. Access Control Features such as ACL, MAC/port filtering, 802. 1X, and RADIUS are compatible with layered access controls DIN-Rail Mount IP30 rated metal enclosure includes DIN-rail mounting bracket Monitoring RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions. Alarm Relay Alarm relay triggered by power failure of primary and/or redundant power Redundant Power Redundant power inputs with overload current protection (power supply sold separately: TI-M6024). Grounding Point Grounding point protects equipment from external electrical surges. PACKAGE CONTENTS TI-G160i DIN rail mounting bracket Quick Installation Guide More from the Manufacturer
