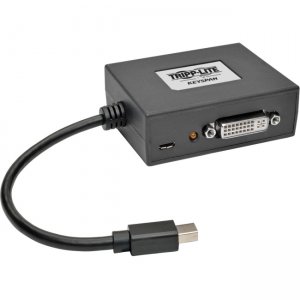

Tripp Lite 2-Port Mini DisplayPort 1.2 to DVI MST Hub B155-002-DVI-V2

Tripp Lite 2-Port Mini DisplayPort 1.2 to DVI MST Hub B155-002-DVI-V2
Price $80.67
Manufacturer: Tripp Lite
Mfg Number: B155-002-DVI-V2
SKU:
Condition: New
UPC: 037332193438
Accessories
Description
The B155-002-DVI-V2 2-Port Mini DisplayPort 1.2 to DVI MST Hub connects two DVI monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both as one large monitor in video wall mode.The B155-002-DVI-V2 is compliant with Mini DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz on each monitor. Expanded video resolutions are supported when displaying in video wall mode, such as 3840 x 1080 in a horizontal 1 x 2 monitor configuration or 1920 x 2160 in a vertical 2 x 1 monitor configuration. The B155-002-DVI-V2 also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.This MST hub works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-002-DVI-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Specifications
Product TypeSignal Splitter
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelB155-002-DVI-V2
Product NameB155-002-DVI-V2 2-Port Mini DisplayPort 1.2 to DVI MST Hub
Manufacturer Part NumberB155-002-DVI-V2
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityREACHRoHS
Package Contents
  • B155-002-DVI-V2 2-Port Mini DisplayPort 1.2 to DVI MST Hub
  • USB Micro-B Cable, 3 ft.
  • Owner's Manual
Maximum Video Resolution3840 x 1080
USBYes
DisplayPortYes
Number of DVI Outputs2
DVI OutYes
Number of DisplayPort Inputs1
Height1"
Width3"
Depth2.4"
Weight (Approximate)3.20 oz
Limited Warranty1 Year
