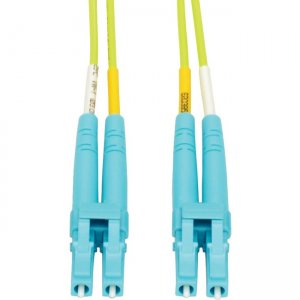

Tripp Lite Fiber Optic Duplex Patch Network Cable N820-02M-OM5

Tripp Lite Fiber Optic Duplex Patch Network Cable N820-02M-OM5
Price $21.36
Manufacturer: Tripp Lite
Mfg Number: N820-02M-OM5
SKU:
Condition: New
UPC: 037332225184
Accessories
Description
Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch Cable As the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. Tripp Lite's OM5 Duplex Multimode 50/125 Fiber Patch Cable is a wideband multimode fiber (WBMMF) solution that supports at least four wavelengths in the 850-950 nm range. This LC to LC multimode fiber optic patch cable is well-suited for 40/100 Gb Ethernet applications up to 300 meters (at 850 nm). Its short two-meter length reduces cable clutter. Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution The N820-02M-OM5 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) to offer a cost-effective, high-bandwidth solution over extended distances in the 850-950 nm wavelength range. It is commonly used in LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. Experience Reliable Performance with Premium Construction Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The cable has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The lime green color of the jacket identifies the cable as OM5 rated. It meets current IEEE 802.3ae and TIA LOMMF standards. Employ OM5 Cable for Backward Compatibility and Future Proofing Rated OM5, the N820-02M-OM5 cable is backward compatible with existing OM3- and OM4-rated 50/125 fiber solutions. This LC to LC multimode fiber optic cable can also be used with shortwave wavelength division multiplexing (SWDM) technology to provide transmission over longer distances in the 850-950 nm wavelength range than OM3- and OM4-rated cables. Plus, the OM5 cables will be compatible with SWDM solutions in future networks with even higher bandwidths. Lifetime Warranty The N820-02M-OM5 is backed by a lifetime limited warranty, ensuring reliability and performance.
Specifications
Product Type Network Cable
Manufacturer Part Number N820-02M-OM5
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite by Eaton
Product Model N820-02M-OM5
Product Name N820-02M-OM5 Fiber Optic Duplex Patch Network Cable
Brand Name Tripp Lite
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Product Color Lime Green
Cable Length 6.60 ft
Data Transfer Rate 100 Gbit/s
Device Supported Network Device
Features Halogen Free
Cable Characteristic Patch Cable
Cable Type Fiber Optic
Connector Type on First End LC Network - Male
Connector Type on Second End LC Network - Male
Core/Cladding Diameter 50/125 µm
Fiber Optic Mode Multi-mode
Connector on First End Details 2 x LC Network - Male
Connector on Second End Details 2 x LC Network - Male
Limited Warranty Lifetime
