Tripp Lite 18-Outlet PDU PDU3EVSR6G60A

Tripp Lite 18-Outlet PDU PDU3EVSR6G60A
Price $2,056.10
Manufacturer: Tripp Lite
Mfg Number: PDU3EVSR6G60A
Condition: New
UPC: 037332206756

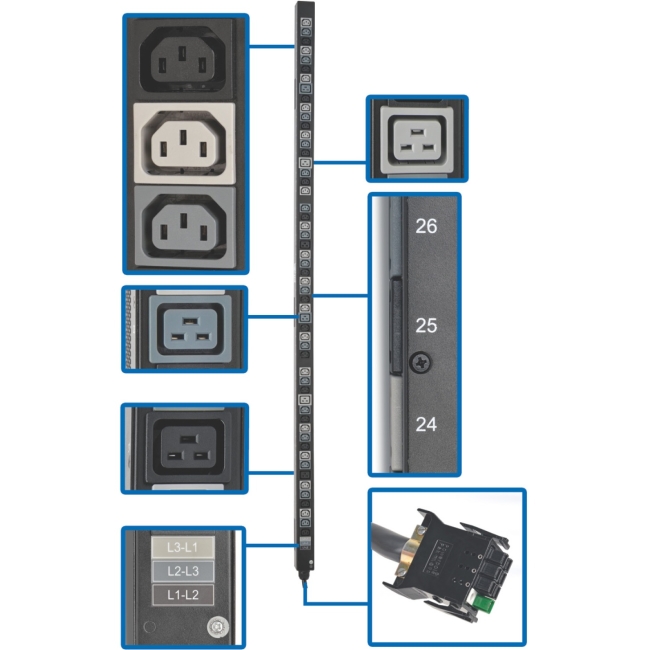

Features3-Phase PDU Distributes, Monitors and Manages Network-Grade PowerRecommended for data centers, server rooms and high-density network closets, this switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the 0U PDU's total cost of ownership.18 Outlets Dispense AC Power to Connected EquipmentDuring normal operation, 18 individually controllable outlets-six C13 and 12 C19-in six separately breakered load banks distribute AC power to rack equipment. Each 208V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.Built-In LX Platform Network Management Card Allows Remote Access 24/7The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.Color Touchscreen LCD Offers Important Data at a GlanceAn easy-to-navigate color touchscreen LCD reports network data, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity.Easy to Install Vertically in an EIA-Standard 19 in. RackThe 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the Hubbell PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with Hubbell 50A CS8365C (3P+E) 3-phase input connects the switched PDU to a compatible AC power source, generator or protected UPS.TAA-Compliant for GSA Schedule PurchasesThe PDU3EVSR6G60A is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.2-Year WarrantyThe PDU3EVSR6G60A is backed by a 2-year warranty, ensuring reliability and performance.
Product Type PDU
Manufacturer Part Number PDU3EVSR6G60A
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite by Eaton
Product Model PDU3EVSR6G60A
Product Name PDU3EVSR6G60A 18-Outlet PDU
Brand Name Tripp Lite
Management Protocols:
  • IPv4
  • IPv6
  • HTTP
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • Telnet
  • SSH
  • FTP
  • DHCP
  • NTP
Package Contents
  • PDU3EVSR6G60A 18-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 18 x Plug-Lock Insert Sleeves
  • Rack-Mounting Hardware
  • Spare Mounting Buttons
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Weight (Approximate) 20.68 lb
Mount Type Rack-mountable
Rack Height 0U
Height 70"
Width 2.2"
Depth 2.5"
Mounting Orientation Vertical
Input Voltage 230 V AC
Output Voltage 208 V AC
Input Current 45 A
Power Rating (Watt) 16.20 kW
Protection Type Overload Protection
Plug/Connector Type IEC 60309 60A BLUE (3P+E)
Phase Three Phase
Receptacle Type IEC 60320 C19 IEC 60320 C13
PDU Type Monitored
Receptacle Detail 12 x IEC 60320 C19 6 x IEC 60320 C13
Limited Warranty 2 Year
