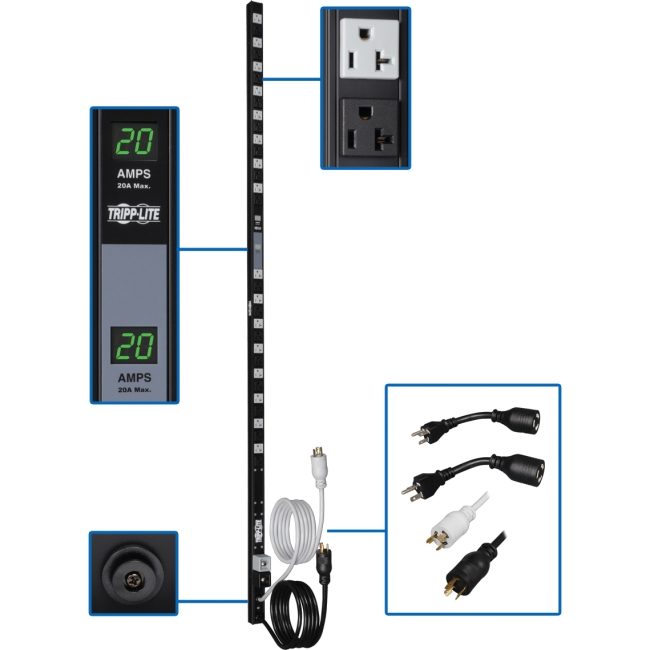

Tripp Lite Switched 24-Outlets PDU PDU3XVSR6G30A

Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet.

Product Type	PDU
Product Series	Switched
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	PDU3XVSR6G30A
Product Name	Switched PDU3XVSR6G30A 24-Outlets PDU
Manufacturer Part Number	PDU3XVSR6G30A
Manufacturer Website Address	http://www.tripplite.com
Package Contents	Switched PDU3XVSR6G30A 24-Outlets PDU Plug-Lock Cable Retention Inserts Spare Installation Buttons (2 9mm / 4 6mm) Mounting Brackets Configuration Cable Owner's Manual
Cord Length	6 ft
Height	70"
Width	2.2"
Depth	2.5"
Rack Height	0U
Form Factor	Vertical Rackmount
Weight (Approximate)	17.20 lb
Power Rating	18 kVA
Input Current	24 A
Input Voltage	415 V AC
Output Voltage	240 V AC
Input Receptacles	IEC 309 30A RED 3P+N+E
Output Receptacles	12 x IEC 60320 C1312 x IEC 60320 C19
Protection Type	Overload Protection
Limited Warranty	2 Year
