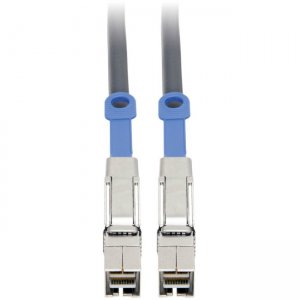

Tripp Lite Mini-SAS External HD Cable - SFF-8644 to SFF-8644, 12 Gbps, 1 m (3.3 ft.) S528

High-Performance Mini-SAS External HD Cable for Connecting SAN Devices This four-channel InfiniBand cable connects two storage devices with external mini-SAS HD SFF-8644 connectors, such as 12G RAID controllers, SATA hard drives, enclosures and JBOD devices. It supports data transfer rates up to 12 Gbps, which is faster than eSATA, USB 3.0 and Thunderbolt cables. The high-density connectors are surrounded by durable die-cast zinc that is compatible with shielded external connectors. Protective caps defend the connectors against dust and damage. Convenient pull-tabs make it easy to disconnect the cable in crowded racks and other applications. The S528-01M is backward compatible with previous SAS versions to ensure compatibility with your devices.

Product Type	Data Transfer Cable
Manufacturer Part Number	S528-01M
Manufacturer Website Address	http://www.tripplite.com
Manufacturer	Tripp Lite by Eaton
Product Model	S528-01M
Product Name	Mini-SAS External HD Cable - SFF-8644 to SFF-8644, 12 Gbps, 1 m (3.3 ft.)
Brand Name	Tripp Lite
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS
Product Color	Black
Cable Length	3.30 ft
Data Transfer Rate	12 Gbit/s
Device Supported	Storage Device Hard Drive
Shielding	Yes
Cable Type	Mini-SAS HD
Connector Type on First End	SFF-8644 Mini-SAS HD - Male
Connector Type on Second End	SFF-8644 Mini-SAS HD - Male
American Wire Gauge	28 AWG
Contact Plating	Gold
Connector on First End Details	1 x SFF-8644 Mini-SAS HD - Male
Connector on Second End Details	1 x SFF-8644 Mini-SAS HD - Male
Limited Warranty	Lifetime
