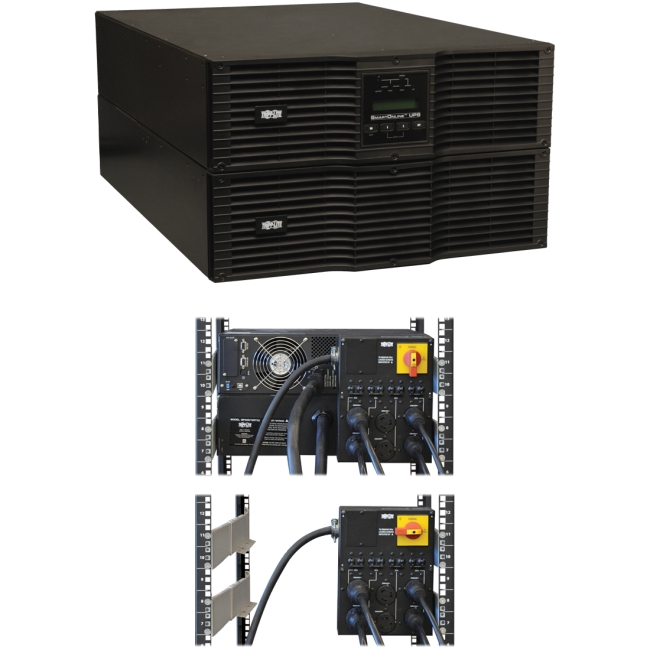

Tripp Lite SmartOnline EZ 16kVA Tower/Rack Mountable UPS SU16KRT

Tripp Lite SU16KRT 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Product Type	Dual Conversion Online UPS
Product Series	EZ
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SU16KRT
Product Name	SmartOnline EZ SU16KRT 16kVA Tower/Rack Mountable UPS
Product Line	SmartOnline
Manufacturer Part Number	SU16KRT
Manufacturer Website Address	http://www.tripplite.com
Batteries	User Replaceable Hot-swappable
Backup/Run Time	0.09 Hour 14.40 kW Full Load0.23 Hour 7.20 kW Half Load
Battery Recharge Time	<8 Hour
Height	5.1"
Width	17.5"
Depth	26"
Form Factor	12U Tower/Rack Mountable
Weight (Approximate)	43 lb
Receptacles	2 x NEMA L6-30R
Plug/Connector Type	Hardwired
Interfaces/Ports	DB-9 RS-232 SerialUSB
Input Voltage Range	200 V AC Nominal208 V AC Nominal230 V AC Nominal240 V AC Nominal
Load Capacity	16 kVA/14.40 kW
Input Voltage	220 V AC
Output Voltage	200 V AC Nominal208 V AC Nominal220 V AC Nominal230 V AC Nominal240 V AC Nominal
Network Management	SNMP Manageable Included
Package Contents	SmartOnline EZ SU16KRT 16kVA Tower/Rack Mountable UPS 2 x Power Modules L6-30R / C19 parallel PDU with Bypass Switch 2 x Battery Packs PowerAlert Software CD USB Cable Serial Cable EPO Cable 4 x Sets of Adjustable 4 Post Rack Rails
Limited Warranty	2 Year
