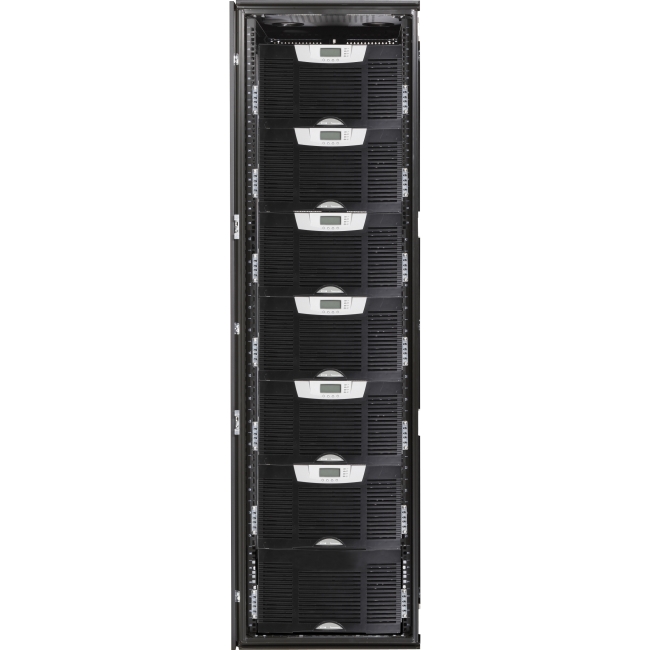

Tripp Lite SmartOnline 140KVA Tower UPS SV140KL8P

Tripp Lite SmartOnline 140KVA Tower UPS SV140KL8P
Price $53,416.29
Manufacturer: Tripp Lite
Mfg Number: SV140KL8P
SKU:
Condition: New
UPC: 037332209382
Accessories
Description
The SV140KL8P SmartOnline® SV Series 140kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.The SV140KL8P includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and eight included 20kVA SV20PM power modules. The system is fully configured at 140kVA maximum capacity with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 140kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite's BP240V370, are sold separately.
Specifications
Product TypeDual Conversion Online UPS
Product SeriesSV
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelSV140KL8P
Product NameSmartOnline SV140KL8P 140KVA Tower UPS
Product LineSmartOnline
Manufacturer Part NumberSV140KL8P
Manufacturer Website Addresshttp://www.tripplite.com
Environmentally FriendlyYes
Environmental CertificationRoHS
Load Capacity (VA)140 kVA
Load Capacity (Watt)126 kW
Input Voltage120 V AC230 V AC
Output Voltage120 V AC230 V AC
Height79.1"
Width23.6"
Depth43.3"
Form FactorTower
Weight (Approximate)1210.01 lb
ReceptaclesHard Wire 4-wire (3P + N + E)
Plug/Connector TypeHard Wire 4-wire (3P + N + G)
Network ManagementSNMP Manageable
Limited Warranty2 Year
