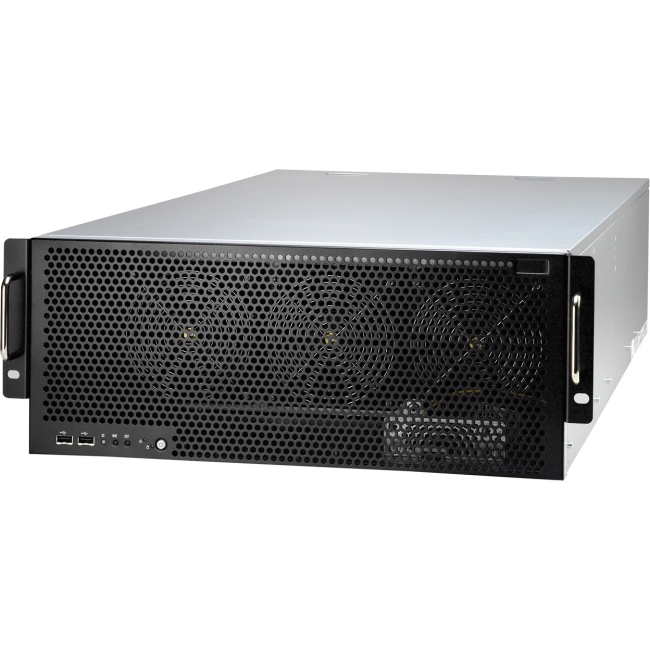

Tyan Thunder HX FA77B7119 B7119F77V10E4HR-2T-N FA77-B7119

3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - Serial ATA/600 RAID Supported Controller - ASPEED AST2500 32 MB Integrated - 14 x Total Bays - 14 2.5" Bay(s) - 13 x Total Expansion Slots - Processor Support (Xeon Platinum, Xeon Gold) - 10 Gigabit Ethernet, Gigabit Ethernet - 4 USB 3.0 Port(s) - 4 x 4800 W

Product Type	Barebone System
Brand Name	Tyan
Manufacturer	Tyan Computer Corp
Product Model	FA77-B7119
Product Name	Thunder HX FA77B7119 (B7119F77V10E4HR-2T-N)
Product Line	Thunder HX
Manufacturer Part Number	B7119F77V10E4HR-2T-N
Manufacturer Website Address	http://www.tyan.com
Packaged Quantity	1
Environmentally Friendly	Yes
Environmental Certification	RoHS-6
Package Contents	Thunder HX FA77B7119 (B7119F77V10E4HR-2T-N) 1 x Quick Installation Guide 1 x TYAN Device Driver CD
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C621
Number of Processors Supported	2
Processor Socket	Socket P LGA-3647
Processor Supported	Xeon PlatinumXeon Gold
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500
Graphics Memory Capacity	32 MB
Number of SATA Interfaces	10
Total Number of USB Ports	4
Number of USB 3.0 Ports	4
Number of Power Supplies Installed	4
Maximum Power Supply Wattage	4800 W
Input Voltage	120 V AC230 V AC
Number of Internal 2.5" Bays	14
Number of Total Expansion Bays	14
Number of Total Expansion Slots	13
Number of PCI Express x16 Slots	13
Number of Total Memory Slots	24
Memory Standard	DDR4-2666/PC4-21300
Memory Technology	DDR4 SDRAM
Maximum Memory	3 TB
RAID Supported	Yes
Controller Type	Serial ATA/600
Ethernet Technology	10 Gigabit EthernetGigabit Ethernet
Height	6.9"
Width	17.2"
Depth	30.3"
Rack Height	4U
Form Factor	Rack-mountable
Weight (Approximate)	60.63 lb
Operating System Supported	Windows Server 2012 R2 Datacenter x64Windows Server 2016Red Hat Enterprise Linux 6.9 x64Red Hat Enterprise linux 7.3 x64Red Hat Enterprise linux 7.4 x64Ubuntu 16.04 LTS x64
Limited Warranty	3 Year
