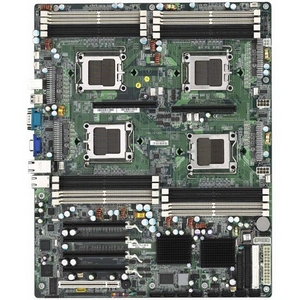

Tyan Thunder n4250QE Server Motherboard S4985G3NR-SI (S4985-SI)

SSI MEB - 4 x Processor Support - 128 GB DDR2 SDRAM Maximum RAM - Floppy Controller, Serial ATA/300, Ultra ATA RAID Supported Controller - On-board Video Chipset - 4 x PCIe x16 Slot

Product Type	Server Motherboard
Product Series	n4250QE
Brand Name	Tyan
Manufacturer	Tyan Computer Corp
Product Model	(S4985-SI)
Product Name	Thunder n4250QE (S4985-SI) S4985G3NR-SI Server Motherboard
Product Line	Thunder
Manufacturer Part Number	S4985G3NR-SI
Manufacturer Website Address	http://www.tyan.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS-6
Package Contents	Thunder n4250QE (S4985-SI) S4985G3NR-SI Server Board 1 x I/O Shield 2 x IDE Cables 2 x SATA 1-to-2 Power Cables 4 x SATA Signal Cables 1 x COM Port Cable 1 x 34-pin FDD Cable 1 x Installation CD 1 x Quick Ref Guide 1 x User Manual
64-bit Processing	Yes
Chipset Manufacturer	AMD
Chipset Model	nForce Pro 2200
HyperTransport Speed	2200 MHz
Processor Technology	Hyper-Threading Technology
Processor Socket	Socket F (1207)
Processor Supported	Opteron Dual-CoreCore 2 Extreme Quad-Core
Total Processor Supported	4
Number of Memory Slots	16
Memory Technology	DDR2 SDRAM
Maximum Memory	128 GB
Number of PCI Slots	1
Number of Total Expansion Slots	5
Number of PCI Express x16 Slots	4
Total Number of PCI Express Slots	4
Graphics Controller Manufacturer	XGI
Graphics Controller Model	Z7
Graphics Controller Memory	16 MB
Onboard Video	On-board Video Chipset
Gigabit Ethernet	Yes
Number of IDE Interfaces	2
Number of SATA Interfaces	8
Total Number of Onboard USB Ports	4
RAID Supported	Yes
Controller Type	Floppy ControllerSerial ATA/300Ultra ATA
Network (RJ-45)	Yes
Total Number of USB Ports	2
PS/2 Port	Yes
Number of PS/2 Ports	1
Width	16.2"
Depth	13"
Form Factor	SSI MEB
Limited Warranty	3 Year
