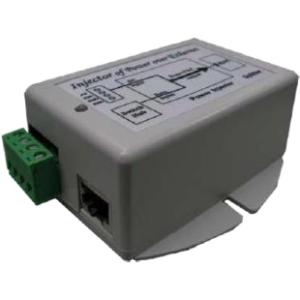

Tycon Power 24 W DC to DC Converter with POE Inserter TP-DCDC-1248

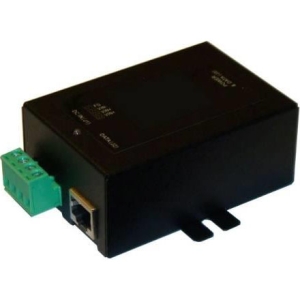

The TP-DCDC Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 18V to 48VDC Power Over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 48VDC to the CAT5 Ethernet cable. The output is regulated 18V, 24V or 48VDC from an input voltage between 9VDC and 36VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). An IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake.They have various protections for surge, short circuit and overload. The units have power output up to 24W.

Input Ports	RJ-48 Ethernet
Output Ports	RJ-45 Ethernet
Product Series	TP-DCDC
Brand Name	Tycon Power
Manufacturer	Tycon Power Systems
Product Model	TP-DCDC-1248
Product Name	24 W DC to DC Converter with POE Inserter
Manufacturer Part Number	TP-DCDC-1248
Manufacturer Website Address	http://www.tyconpower.com
Certifications & Standards	FCC Class B NE55022 Class B UL1950 CSA 22.2 TUV EN60950
Height	1.4"
Width	3"
Length	3.3"
Weight (Approximate)	295.42 lb
Compatibility	Wireless Access Points Client Devices IP Phones Security Camera Systems
Input Voltage	36 V DC
Output Power	24 W
Output Voltage	48 V DC
