Tycon Power PoE Injector TP-MS308

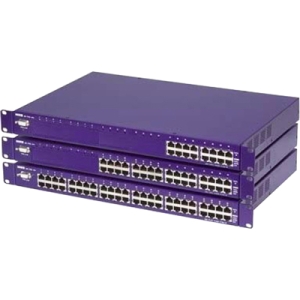

The TP-MS3xx series of rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations room. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant. The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the included RS232 cable. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection. POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.

Input Ports	8 PoE
Output Ports	8 Ethernet
Product Type	PoE Injector
Brand Name	Tycon Power
Manufacturer	Tycon Power Systems
Product Model	TP-MS308
Product Name	TP-MS308 PoE Injector
Manufacturer Part Number	TP-MS308
Manufacturer Website Address	http://www.tyconpower.com
Certifications & Standards	IEEE 802.3af IEEE802.3 IEEE802.3u IEEE802.3ab
Compatibility	Wireless Access Points Client Devices IP Phones Security Camera Systems
Package Contents	TP-MS308 PoE Injector US Power Cord
Height	1.7"
Width	11.4"
Length	16.9"
Weight (Approximate)	7.05 lb
Maximum Output Power	16.80 W
Input Voltage	42 V DC63 V DC
Limited Warranty	2 Year
