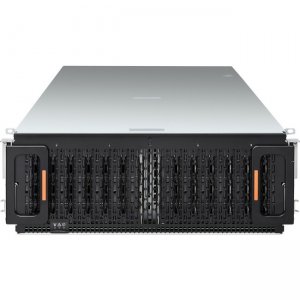

WD Ultrastar Serv60+8 Hybrid Storage Server 1ES1359

Designed for High Density and Flexibility The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost. The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included. Designed for Big Data High Density Up to 780TB raw capacity in a 4U enclosure Hybrid Support for up to 32 SSDs within the server for a data acceleration tier Innovative IsoVibe and ArcticFlow for improved reliability, cooling, and TCO

VGA	Yes
Network (RJ-45)	Yes
Total Number of USB Ports	4
Number of USB 2.0 Ports	2
Number of USB 3.0 Ports	2
Drive Interface	Serial ATA
Controller Type	Serial Attached SCSI (SAS)
Product Type	NAS Storage System
Manufacturer Part Number	1ES1359
Manufacturer Website Address	http://www.wdc.com
Manufacturer	Western Digital Corporation
Product Name	Ultrastar Serv60+8 Hybrid Storage Server
Product Line	Ultrastar Serv60+8
Brand Name	WD
Expansion Slot Type	PCI Express 3.0 x8
Number of Total Expansion Bays	68
Number of Total Expansion Slots	6
Number of 2.5" Bays	8
Number of 2.5"/3.5" Bays	60
Ethernet Technology	10 Gigabit Ethernet
Weight (Approximate)	210 lb
Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	17.6"
Depth	43.3"
Number of Power Supplies Installed	2
Redundant Power Supply	Yes
Maximum Power Supply Wattage	2000 W
Total Hard Drive Capacity Installed	840 TB
Number of Hard Drives Supported	60
Number of Hard Drives Installed	60
Number of Solid State Drive Supported	32
Number of Solid State Drive Installed	No
Processor Type	Xeon
Processor Manufacturer	Intel
Protocols	IPMI 2.0
Limited Warranty	5 Year
