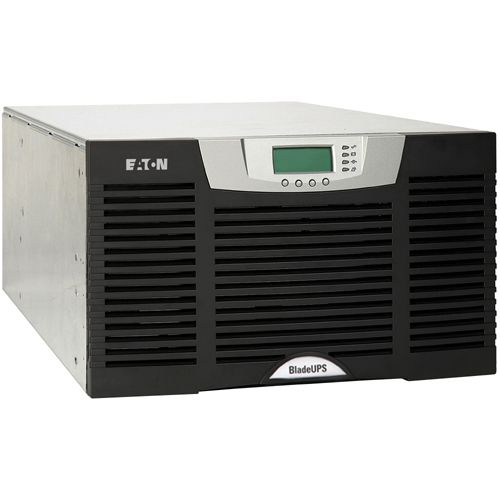

Eaton BladeUPS 12kVA Rack-mountable UPS ZC1212600100000

The Powerware BladeUPS 12kVA is a revolutionary power quality solution providing this robust, compact solution without generating the additional heat associated with legacy end-of-row, modular UPS products. The Powerware BladeUPS 12kVA is designed to be the most flexible UPS on the market. It can be deployed in a number of configurations from a distributed architecture. In addition, the exceptionally high efficiency rating is not a large energy cost burden when installed inline with the output of a large, central UPS or in highly critical computing areas where dual UPS redundancy (2N) is required.

Product Type	Online UPS
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Model	ZC1212600100000
Product Name	BladeUPS ZC1212600100000 12kVA Rack-mountable UPS
Product Line	BladeUPS
Manufacturer Part Number	ZC1212600100000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Batteries	Valve-regulated Lead Acid (VRLA)
Backup/Run Time	0.08 Hour 12 kW Full Load0.22 Hour 6 kW Half Load
Height	10.5"
Width	17.4"
Depth	26"
Form Factor	6U Rack-mountable
Weight (Approximate)	135 lb without batteries
Receptacles	Hard Wire 4-wire 3PH
Plug/Connector Type	Hard Wire 5-wire 3PH
Input Voltage Range	208 V AC Nominal180 V AC to 255 V AC
Load Capacity	12 kVA/12 kW
Input Voltage	110 V AC220 V AC
Output Voltage	180 to 265 V AC
Network Management	SNMP Manageable Optional
Package Contents	BladeUPS ZC1212600100000 12kVA Rack-mountable UPS Software Suite CD
Limited Warranty	1 Year
