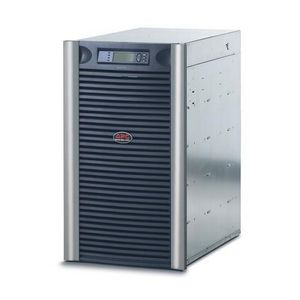

APC Symmetra LX 12kVA Rackmountable UPS SYA12K16RMP

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Product Type	Dual Conversion Online UPS
Product Series	LX
Brand Name	APC
Manufacturer	American Power Conversion Corp
Product Name	Symmetra LX 12kVA Rackmountable UPS
Product Line	Symmetra
Manufacturer Part Number	SYA12K16RMP
Manufacturer Website Address	http://www.apc.com
Batteries	Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time	0.28 Hour 4.80 kW Half Load0.10 Hour 9.60 kW Full Load
Height	33"
Width	19"
Depth	27"
Form Factor	19U Rack-mountable
Weight (Approximate)	534 lb
Receptacles	1 x Hard Wire 4-wire 2PH + N + G - Backup/Surge-protected4 x NEMA L14-30R - Backup/Surge-protected8 x NEMA L5-20R - Backup/Surge-protected
Plug/Connector Type	Hard Wire 4-wire 2PH + N + G
Input Voltage Range	208 V AC Nominal155 V AC to 276 V AC Mains Operation
Load Capacity	12 kVA/9.60 kW
Input Voltage	220 V AC
Output Voltage	120 V AC Nominal208 V AC Nominal
Network Management	SNMP Manageable
Package Contents	Symmetra LX 12kVA Rackmountable CD with software Documentation CD Installation Guide Rack Mounting support rails User Manual Web/SNMP Management Card
Limited Warranty	2 Year Lifetime
