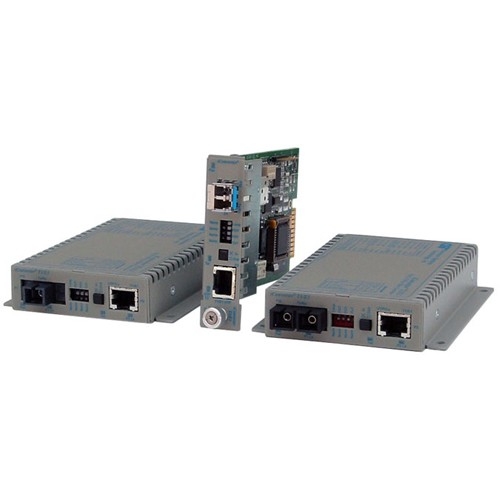

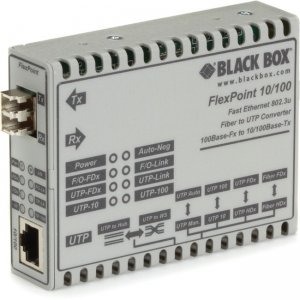

Black Box FlexPoint Transceivers/Media Converters LMC100A-LC-R2

Both UTP and fiber ports support full- and half-duplex operation. UTP port auto senses 10- or 100-Mbps speeds. Manual override switch for extra control over fiber and UTP ports. Crossover switch provides easy connections to hubs or switches. Hardware is available for mounting converter to a wall or a DIN rail. It can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit. FlexPoint™ Converters from Black Box® are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.

Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of LC Ports	1
Total Number of Ports	2
LC Port Type	Duplex
Product Type	Transceiver/Media Converter
Manufacturer Part Number	LMC100A-LC-R2
Manufacturer Website Address	http://www.blackbox.com
Manufacturer	Black Box Corporation
Product Name	FlexPoint Transceivers/Media Converters
Product Line	FlexPoint
Brand Name	Black Box
Maximum Distance Supported	1.24 Mile
Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1300 nm
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
TAA Compliant	Yes
Network Technology	100Base-FX 100Base-TX
Ethernet Technology	Fast Ethernet
Weight (Approximate)	6.40 oz
Form Factor	Wall Mountable Rail-mountable
Height	1"
Width	3"
Depth	4"
Power Source	Power Supply
Limited Warranty	2 Year
