Cisco UCS C220 M5 Server UCS-SP-C220M5-B1

Cisco UCS C220 M5 Server UCS-SP-C220M5-B1
Price $6,739.73
Manufacturer: Cisco
Mfg Number: UCS-SP-C220M5-B1
Condition: New

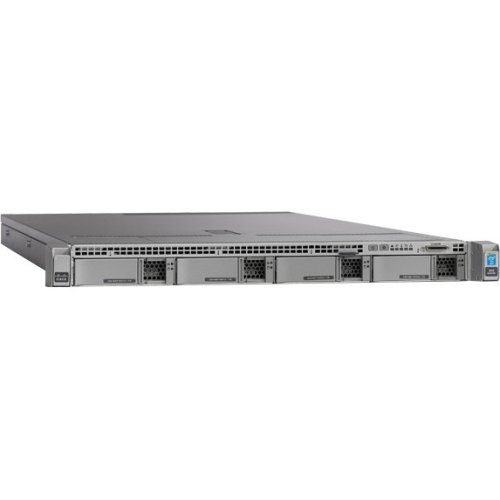

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Product Type Server
Product Series C220 M5
Brand Name Cisco
Manufacturer Cisco Systems, Inc
Product Name UCS C220 M5 Server
Manufacturer Part Number UCS-SP-C220M5-B1
Manufacturer Website Address http://www.cisco.com
Processor Core Octa-core (8 Core)
Processor Manufacturer Intel
Number of Processors Supported 2
Number of Processors Installed 2
Processor Model 3106
Processor Speed 1.70 GHz
Processor Type Xeon Bronze
Graphics Controller Manufacturer ASPEED
Graphics Controller Model Pilot 4
Graphics Memory Capacity 16 MB
Number of Power Supplies Supported 2
Number of Internal 2.5" Bays 10
Number of Total Expansion Bays 10
Hot Swappable Bays Yes
Number of Total Memory Slots 24
Number of Occupied Memory Slots 4
Memory Technology DDR4 SDRAM
Maximum Memory Supported 3 TB
Standard Memory 64 GB
RAID Supported Yes
Controller Type 12Gb/s SAS
Ethernet Technology 10 Gigabit Ethernet
Height 1.7"
Width 19"
Depth 31"
Rack Height 1U
Form Factor Rack
Weight (Approximate) 37.50 lb
