CyberPower 16-Outlet PDU PDU31003

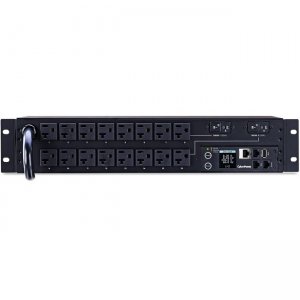

The CyberPower PDU31003, a 16-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 120V 30A output. PDU31003 distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD. Delivers AC power to servers, equipment, and connected devices Switch-free design safeguards against accidental power shutdown Provides local and remote control for individual and multiple outlets Enables offsite and onsite tracking of PDU vitals Provides immediate updates about power events via email, SMS text, or SNMP traps Includes 3-year limited warranty

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	PDU31003
Manufacturer Website Address	http://www.cyberpowersystems.com
Manufacturer	CyberPower Systems, Inc
Product Model	PDU31003
Product Name	PDU31003 16-Outlet PDU
Product Series	Monitored PDU
Brand Name	CyberPower
Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Package Contents	PDU31003 16-Outlet PDU 4 x Mounting Brackets: 2 Short & 2 Long 12 x (Flat Head M4 x 8) Bracket Mounting Screws 6 x (M5 x 12) Rack Mounting Screws/Washers 2 x Cord Retention Tray 12 x (M3 x 6) Cord Retention Tray Mounting Screws 24 x Cable Ties RJ45/DB9 Serial Port Connection Cable Users Manual Registration & Software Download Cards
Country of Origin	China
Energy Star	No
Weight (Approximate)	8.80 lb
Length	4.4"
Mount Type	Rack-mountable
Rack Height	2U
Height	3.5"
Width	17.1"
Input Voltage	120 V AC
Input Current	30 A
Input Voltage Range	100 V AC - 120 V AC
Output Voltage Range	100 V AC - 120 V AC
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-20R
PDU Type	Monitored
Receptacle Detail	16 x NEMA 5-20R
Plug/Connector Detail	1 x NEMA L5-30P
Limited Warranty	3 Year
