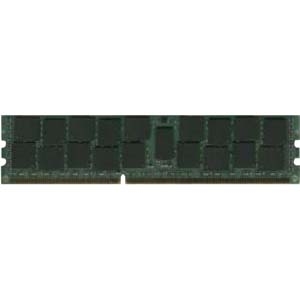

Dataram 8GB DDR3 SDRAM Memory Module DRC1600D1X/8GB

Each DRC1600R upgrade consists of a single DDR3- 1600 Registered ECC DIMM that conforms to JEDEC's DDR3, PC3L-12800 standard. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Product Type	RAM Module
Brand Name	Dataram
Manufacturer	Dataram Corporation
Product Name	8GB DDR3 SDRAM Memory Module
Manufacturer Part Number	DRC1600D1X/8GB
Manufacturer Website Address	http://www.dataram.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Width	1.2"
Form Factor	DIMM
Length	5.3"
Number of Pins	240-pin
Memory Voltage	1.35 V
Memory Standard	DDR3-1600/PC3-12800
Memory Technology	DDR3 SDRAM
Memory Size	8 GB
Memory Speed	1600 MHz
Error Checking	ECC
Number of Modules	1 x 8 GB
Signal Processing	Registered
Limited Warranty	Lifetime
