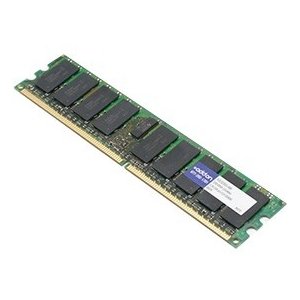

Dataram 8GB DDR3 SDRAM Memory Module DTM64614C

DTM64614C is an Unbuffered DDR3 1Gx72 memory module with ECC bits which conforms to JEDEC's PC3L-12800 standard. The assembly is single rank containing: eighteen Samsung 512Mx8 DDR3L SDRAMs. One 2K-bit EEPROM with thermal sensor is used for Serial Presence Detect. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals.

Product Type	RAM Module
Manufacturer Part Number	DTM64614C
Manufacturer Website Address	http://www.dataram.com
Manufacturer	Dataram Corporation
Product Name	8GB DDR3 SDRAM Memory Module
Brand Name	Dataram
Number of Pins	204-pin
Thickness	137.8 mil
Form Factor	SoDIMM
Length	2.7"
Width	1.2"
CAS Latency	CL11
Error Checking	ECC
Number of Modules	1 x 8GB
Signal Processing	Unbuffered
Memory Speed	1600 MHz
Memory Size	8 GB
Memory Technology	DDR3 SDRAM
Memory Standard	DDR3-1600/PC3L-12800
Memory Voltage	1.35 V
