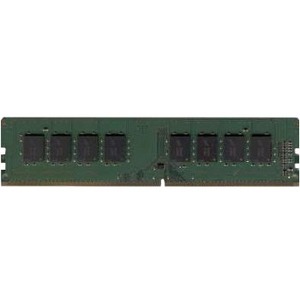

Dataram 8GB DDR4 SDRAM Memory Module DTM68104C

DTM68104C is an unbuffered 1Gx64 memory module, which conforms to JEDEC's DDR4-2133, PC4-2133 standard. The assembly is Dual-Rank containing: sixteen Hynix 512Mx8 DDR4-2133 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

Product Type	RAM Module
Manufacturer Part Number	DTM68104C
Manufacturer Website Address	http://www.dataram.com
Manufacturer	Dataram Corporation
Product Name	8GB DDR4 SDRAM Memory Module
Brand Name	Dataram
Number of Pins	288-pin
Thickness	156.7 mil
Form Factor	DIMM
Length	5.3"
Width	1.2"
Error Checking	Non-ECC
Number of Modules	1 x 8GB
Signal Processing	Unbuffered
Memory Speed	2133 MHz
Memory Size	8 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2133/PC4-2133
Memory Voltage	1.20 V
