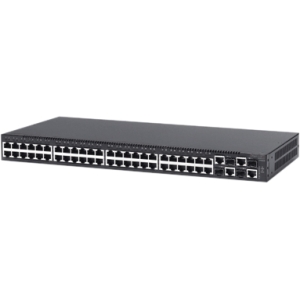

Edge-Core L2/4 Fast Ethernet Standalone Switch ES3552M

The Edge-Core ES3552M is a Fast Ethernet Layer 2/4 switch featuring 52 ports; 48 100Base-TX ports and 4 combo Gigabit Ethernet RJ-45/SFP (Small Form Factor Pluggable) ports. It is ideal for desktop Fast Ethernet connectivity and wiring closet installations. Using IP Clustering for a virtual stack of up to 36 switches. The whole stack can be managed as a single entity with a single IP address. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security and advanced QoS to the network edge, while maintaining simplicity of management.

Product Type	Ethernet Switch
Brand Name	Edge-Core
Manufacturer	Edge-Core Networks Corporation
Product Model	ES3552M
Product Name	ES3552M L2/4 Fast Ethernet Standalone Switch
Manufacturer Part Number	ES3552M
Manufacturer Website Address	http://www.edge-core.com
Manageable	Yes
Compatible Rack Unit	1U
Height	1.7"
Width	17.3"
Depth	9.1"
Form Factor	Rack-mountable
Weight (Approximate)	6.39 lb
Ethernet Technology	Fast EthernetGigabit Ethernet
Media Type Supported	Twisted Pair
Network Technology	10/100Base-TX10/100/1000Base-T
Number of Total Expansion Slots	4
Expansion Slot Type	SFP
Number of Network (RJ-45) Ports	48
Total Number of Network Ports	48
Port/Expansion Slot Details	48 x Fast Ethernet Network4 x Gigabit Ethernet Uplink4 x Gigabit Ethernet Expansion Slot
PoE (RJ-45) Port	No
Input Voltage	110 V AC220 V AC
Limited Warranty	Lifetime
Layer Supported	4
