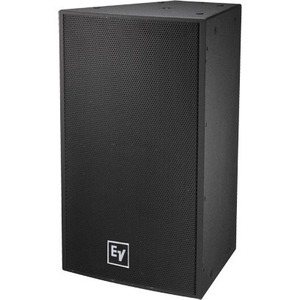

Electro-Voice EVF-1122D/66 Premium 12" 2-Way Full-Range Loudspeaker EVF-1122D/66-PIB

Electro-Voice EVF-1122D/66 Premium 12" 2-Way Full-Range Loudspeaker EVF-1122D/66-PIB
Price $2,870.66
Manufacturer: Electro-Voice
Mfg Number: EVF-1122D/66-PIB
Condition: New
UPC: 800549699648
Key Features: DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver DVX3121A 12" (305 mm) LF transducer with fully symmetric drive Advanced fourth-order crossover network with HF protection Coverage pattern: 60° x 60° Constant Directivity™ 12" rotatable waveguide 97 dB sensitivity, 131 dB maximum SPL System rating: 600 W continuous, 2400 W peak Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak) (22) M10 threaded suspension points PI version available with gland nut and stainless-steel grille General Description:The Electro-Voice EVF-1122D/66 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.The EVF-1122D/66 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity™ 60° x 60° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.The EVF-1122D/66's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.
Product TypeSpeaker
Product SeriesEVF
Brand NameElectro-Voice
ManufacturerThe Bosch Group
Product NameEVF-1122D/66 Premium 12" 2-Way Full-Range Loudspeaker
Product LinePremium
Manufacturer Part NumberEVF-1122D/66-PIB
Manufacturer Website Addresshttp://www.bosch.com
Woofer Diameter12"
ColorBlack Finish
Weight (Approximate)65.50 lb
Crossover Type2-way
Minimum Frequency Response49 Hz
Maximum Frequency Response21 kHz
RMS Output Power600 W
PMPO Output Power2400 W
Driver Type3" Titanium Tweeter12" Woofer
Impedance8 Ohm
Sensitivity131 dB
