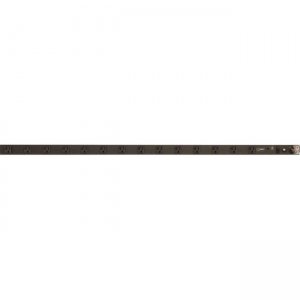

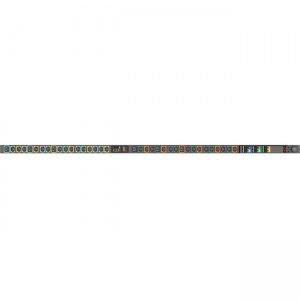

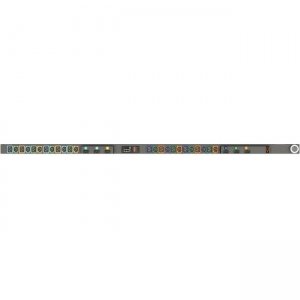

Geist rPDU 36-Outlets PDU NS30032L MNS3EGW2-36PT63-3PS56B0A10-S-A

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime. Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	NS30032L
Manufacturer Website Address	http://www.vertiv.com/
Manufacturer	Vertiv
Product Model	MNS3EGW2-36PT63-3PS56B0A10-S-A
Product Name	rPDU MNS3EGW2-36PT63-3PS56B0A10-S-A 36-Outlets PDU
Product Series	rPDU
Brand Name	Geist
Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+
Package Contents	rPDU MNS3EGW2-36PT63-3PS56B0A10-S-A 36-Outlets PDU Vertical Mounting Bracket Kit
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	RoHS
TAA Compliant	Yes
Length	72"
Mount Type	Rack-mountable
Rack Height	0U
Width	2"
Depth	2.6"
Mounting Orientation	Vertical
Input Voltage	230 V AC 415 V AC
Output Voltage	230 V AC
Input Current	30 A
Input Voltage Range	200 V AC - 240 V AC 346 V AC - 415 V AC
Power Rating (Watt)	16.60 kW
Protection Type	Overcurrent Protection Single Pole
Plug/Connector Type	3P+N+E (IP44)
Phase	Three Phase
Receptacle Type	U-Lock IEC 60320 C13 U-Lock IEC 60320 C19
PDU Type	Switched
Receptacle Detail	30 x U-Lock IEC 60320 C13 6 x U-Lock IEC 60320 C19
Plug/Connector Detail	1 x 3P+N+E (IP44)
Limited Warranty	5 Year
