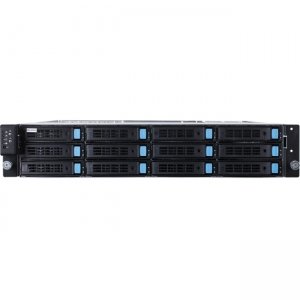

Gigabyte Barebone System R270-R3C

Standard Rackmount Server Intel® Xeon® processor E5-2600 V3 / V4 product family 16 x RDIMM/LRDIMM ECC DIMM slots 12 x 3.5" hot-swappable HDD/SSD bays Supports SAS 12Gb/s and SATA III 6Gb/s connections 2 x 10GbE BASE-T LAN ports (Intel® X540) 2 x 750W 80 PLUS Gold 100~220V AC redundant PSUs

Product Type	Barebone System
Brand Name	Gigabyte
Manufacturer	GIGABYTE Technology, Inc
Product Model	R270-R3C
Product Name	R270-R3C Barebone System
Manufacturer Part Number	R270-R3C
Manufacturer Website Address	http://www.gigabyte.us
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C612
Number of Processors Supported	2
Processor Socket	Socket R3 LGA-2011
Processor Supported	Xeon
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400
Number of SATA Interfaces	10
Number of SAS Interfaces	2
Total Number of USB Ports	5
Number of USB 3.0 Ports	4
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	750 W
Input Voltage	120 V AC230 V AC
Number of Total Memory Slots	16
Memory Standard	DDR4-2400/PC4-19200
Memory Technology	DDR4 SDRAM
Maximum Memory	128 GB
RAID Supported	Yes
Controller Type	Serial ATA/600Serial Attached SCSI (SAS)
Ethernet Technology	Gigabit Ethernet10 Gigabit Ethernet
Number of Total Expansion Bays	12
Number of 3.5" Bays	12
Number of Total Expansion Slots	6
Height	3.4"
Width	16.9"
Depth	28"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	39.68 lb
Operating System Supported	Windows Server 2008 R2 x64Windows Server 2012 x64Windows Server 2012 R2 x64SUSE Linux Enterprise Server 12Red Hat Enterprise Linux 6.7 x64Red Hat Enterprise Linux 7.2 x64SuSE Linux Enterprise Server 11.4 x64Ubuntu 12.04 LTSUbuntu 14.04 LTS
Package Contents	R180-F34 Barebone System 1 x Driver CD 2 x CPU Heatsinks 1 x Rail Kit
Limited Warranty	1 Year
