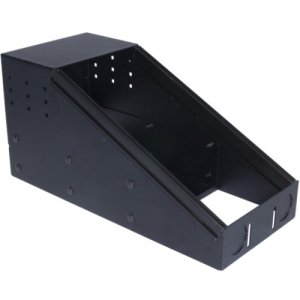

Havis 16" Enclosed 26° Angled Series Console C-SM-1626

16" enclosed 26° Angled Series heavy duty Angled console Overall housing measurements: 20.5" long x 10" high x 9" wide Mounts to vehicle hump bracket, ordered separately (tunnel mount recommended) Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options Works with most Havis, inc. console accessories and control head equipment brackets See drawing min/max for mounting depth allowed for control heads and/or options. Standard wire knockout covers in front end panel of console can be removed to provide professional wiring of mounted equipment Hole pattern on top right corner of console allows mounting of C-MD-102 mounting device Hole pattern on the right side of console allows mounting of C-HDM-204 side mount telescoping pole Internal Angled cup holder not available for this console

Product Type	Vehicle Mount
Product Series	SM
Brand Name	Havis
Manufacturer	Havis, Inc
Product Name	16" Enclosed 26° Angled Series Console
Manufacturer Part Number	C-SM-1626
Manufacturer Website Address	http://www.havis.com
Package Contents	16" Enclosed 26° Angled Series Console Filler Plates (FP)
Height	10"
Width	9"
Depth	20.5"
Limited Warranty	Lifetime
