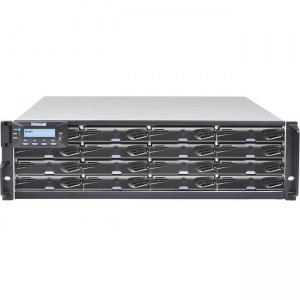

Infortrend EonStor DS SAN Storage System DS3016RUC000F-10T2 3016U

EonStor DS 3000High availability enterprise SAN storage solution From 2U 12-bay to 4U 60-bay systems, EonStor DS 3000 ensures enterprises have access to storage with future-proof design. Modular hardware means redundancy and easy upgrades, while fast performance allows for speedy operations. For scalability, a range of expansion enclosures can host up to 4PB capacity. Systems can be totally customized when placing orders, with variety of propocols, such as FC, iSCSI, SAS, InfiniBand and FCoE, for flexible hybrid interfaces.

Product Type	SAN Storage System
Product Series	3000
Brand Name	Infortrend
Manufacturer	Infortrend Technology, Inc
Product Model	3016U
Product Name	EonStor DS 3016U SAN Storage System
Package Type	Retail
Product Line	EonStor DS
Manufacturer Part Number	DS3016RUC000F-10T2
Manufacturer Website Address	http://www.eonnas.com/us
RAID Supported	Yes
Number of Controllers	2
RAID Levels	0, 1, 3, 5, 6, 10, 30, 50, 60
Controller Type	12Gb/s SAS
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Bays	16
Number of 2.5"/3.5" Bays	16
Network (RJ-45)	Yes
Number of SAS Ports (External)	2
Total Hard Drive Capacity Installed	160 TB
Number of Hard Drives Supported	16
Number of Hard Drives Installed	16
Number of Solid State Drive Supported	16
Number of Solid State Drive Installed	No
Height	5.1"
Width	17.6"
Depth	19.7"
Rack Height	3U
Form Factor	Rack-mountable
Protocols	iSCSISNMPTelnetSSH
Package Contents	EonStor DS 3016U SAN Storage System 1 x Rackmount Kit
Limited Warranty	3 Year
