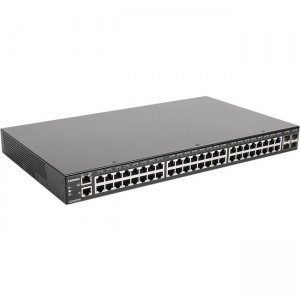

Lenovo Layer 3 Switch 7Z350022WW CE0152PB

The Lenovo CE0152PB Switch is a 1/10 Gb Ethernet (GbE) switch with Power over Ethernet (PoE) that delivers a compact, high-density, cost-effective GbE solution for network environments where space and power are at a premium. Featuring a small, 1U footprint, this switch is designed for access-layer deployments in branches, retail and workgroup environments, and campus networks. It can also be used as a management network switch in the data center infrastructures. The CE0152PB switch offers 48x 10/100/1000BASE-T (RJ-45) fixed ports with Power over Ethernet (PoE) for powering attached network devices, such as such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones. The switch also offers 4x SFP+ ports that support 1 GbE and 10 GbE optical transceivers, 10 GbE active optical cables (AOCs), and 10 GbE direct attach copper (DAC) cables. The switch supports a wide range of L2 and L3 features that provide performance, availability, security, and manageability for campus networks.

Product Type	Layer 3 Switch
Brand Name	Lenovo
Manufacturer	Lenovo Group Limited
Product Model	CE0152PB
Product Name	CE0152PB Layer 3 Switch
Manufacturer Website Address	http://www.lenovo.com/us/en/
Manageable	Yes
Compatible Rack Unit	1U
Height	1.7"
Width	17.4"
Depth	10"
Form Factor	Rack-mountable
Weight (Approximate)	10.14 lb
Ethernet Technology	10 Gigabit EthernetGigabit Ethernet
Media Type Supported	Twisted PairOptical Fiber
Network Technology	10GBase-X10/100/1000Base-T
Number of Total Expansion Slots	4
Number of SFP+ Slots	4
Expansion Slot Type	SFP+
Modular	Yes
Stack Port	Yes
Total Number of Network Ports	48
Port/Expansion Slot Details	48 x Gigabit Ethernet Network4 x 10 Gigabit Ethernet Expansion Slot
Power Source	Power Supply
Layer Supported	3
