Mobile Mark Antenna SMW412-3A3J3J2C-BLK-180

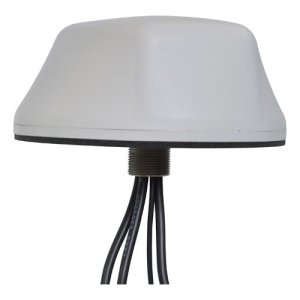

The SMW-412 Series Antennas features 4 elements in one antenna radome. The unique feature of this model is that the cellular element (Cable 1) is extremely widebanded and can cover: LTE at 700 MHz as well as the established 850/1900 GSM/CDMA bands, 1.7/2.1 AWS bands and WiMAX 2.5 all on a single board. This antenna is truly ready for any 4G rollout but is also compatible with earlier generation such as GPRS. See the spec table below for exact frequencies covered on each cable. In additional to covering all of the cellular bands on Cable 1, the antenna also covers 2.4/5 dual-band WiFi on Cables 2 & 3. Other specialized applications are possible, e.g. Public Safety coverage at 700 MHz & 4.9 GHz, Military at 4.4 GHz or DSRC at 5.9 GHz. The antenna is enclosed in a 4.2"D x 3.2"H (107 mm x 81 mm) weatherproof radome, and supplied with all mounting hardware and a sealing gasket. The radome is available in either black or white. The antennas are available in either surface mount or mag-mount models. The anten - nas can also be configured for combined GPS & Glonass use.

Connector Type	TNCSMARP-SMA
Product Type	Antenna
Product Series	SMW-412
Brand Name	Mobile Mark
Manufacturer	Mobile Mark, Inc
Product Model	SMW412-3A3J3J2C-BLK-180
Product Name	SMW412-3A3J3J2C-BLK-180 Antenna
Manufacturer Part Number	SMW412-3A3J3J2C-BLK-180
Manufacturer Website Address	http://www.mobilemark.com
Application/Usage	Cellular NetworkGPSWireless Data Network
Height	3.2"
Depth	4.2"
Color	Black
Form Factor	Surface Mount
Antenna Gain	26 dB
Frequency	694 MHz to 894 MHz1.70 GHz to 2.70 GHz4.40 GHz to 6 GHz1.58 GHz
Limited Warranty	2 Year
