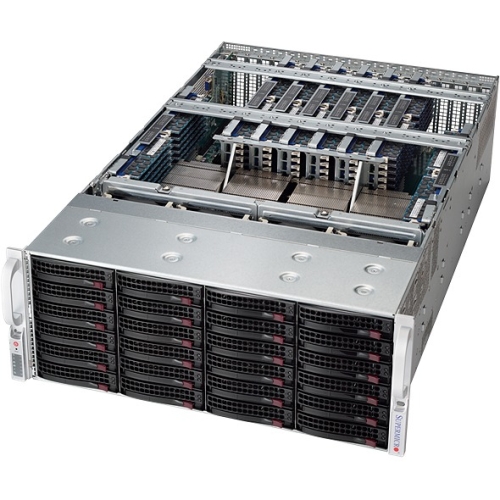

Supermicro StorageServer Barebone System SSG-6048R-DE2CR24L 6048R-DE2CR24L

Fully Redundant Hot-Swap Design IT mode Controller on mezzanine Passive backplane (expander on MB) Dual paths to SAS media OS-Friendly Board-to-Board Connectivity High Availability B2B PCI-E 3.0 x8 B2B Ethernet (1G private network) IPMI embedded management interface Flexible Host or Storage Expansion PCI-E slots expansion Dual JBOD ports SAS3 per node

Product Type	Barebone System
Brand Name	Supermicro
Manufacturer	Supermicro Computer, Inc
Product Model	6048R-DE2CR24L
Product Name	StorageServer 6048R-DE2CR24L Barebone System
Product Line	Storage Server
Manufacturer Part Number	SSG-6048R-DE2CR24L
Manufacturer Website Address	http://www.supermicro.com
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C612
Number of Processors Supported	2
Processor Supported	Xeon
Number of SAS Interfaces	2
RAID Supported	Yes
Controller Type	12Gb/s SAS
Ethernet Technology	10 Gigabit Ethernet
Number of Total Expansion Bays	24
Number of 3.5" Bays	24
Number of Total Expansion Slots	3
Number of PCI Express x8 Slots	3
Maximum Power Supply Wattage	1.28 kW
Memory Standard	DDR4-2133/PC4-17000
Memory Technology	DDR4 SDRAM
Height	5.2"
Width	17.2"
Depth	25.5"
Rack Height	4U
Form Factor	Rack-mountable
