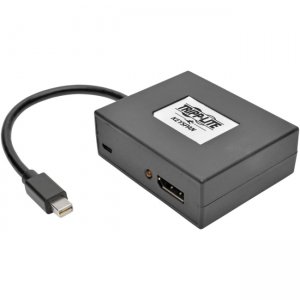

Tripp Lite 2-Port Mini DisplayPort 1.2 to DisplayPort MST Hub B155-002-DP-V2

The B155-002-DP-V2 2-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects two DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.The B155-002-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. The B155-002-DP-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-002-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Product Type	Signal Splitter
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	B155-002-DP-V2
Product Name	B155-002-DP-V2 2-Port Mini DisplayPort 1.2 to DisplayPort MST Hub
Manufacturer Part Number	B155-002-DP-V2
Manufacturer Website Address	http://www.tripplite.com
Maximum Frequency	30 Hz
Minimum Frequency	24 Hz
Environmentally Friendly	Yes
Environmental Certification	RoHSREACH
TAA Compliant	Yes
Package Contents	B155-002-DP-V2 2-Port Mini DisplayPort 1.2 to DisplayPort MST Hub USB Micro-B Cable, 3 ft. Owner's Manual
Maximum Video Resolution	3840 × 2160
DisplayPort	Yes
Number of DisplayPort Outputs	2
Number of DisplayPort Inputs	1
Height	1"
Width	3"
Depth	2.4"
Weight (Approximate)	3.20 oz
Limited Warranty	1 Year
