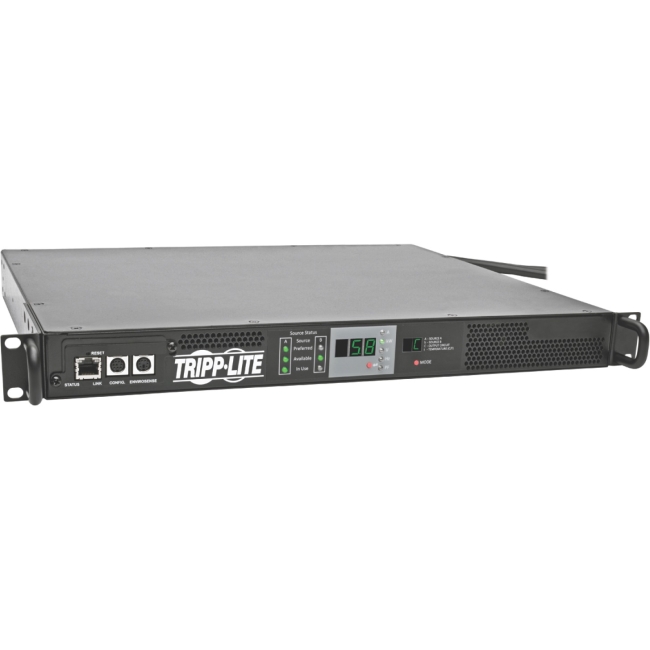

Tripp Lite 5.8kW Single-Phase 208/240V ATS/Monitored PDU PDUMNH30HVAT

The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30P outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug. Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module(sold separately).

Product Type	PDU
Product Series	Monitored
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	PDUMNH30HVAT
Product Name	PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
Manufacturer Part Number	PDUMNH30HVAT
Manufacturer Website Address	http://www.tripplite.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU Rack-Mounting Brackets Owner's Manual
Height	1.7"
Width	16.9"
Depth	14"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	15.37 lb
Power Rating	5.80 kVA
Input Current	30 A
Input Voltage	230 V AC
Output Voltage	230 V AC
Input Receptacles	2 x NEMA L6-30P
Output Receptacles	1 x NEMA L6-30R
Management	Protocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 Telnet SSH FTP DHCP BOOTP NTP
Limited Warranty	2 Year
