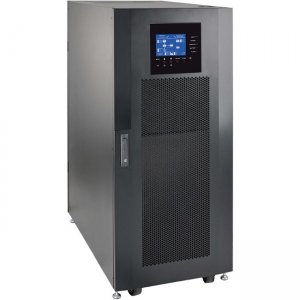

Tripp Lite SmartOnline 60kVA Tower UPS SV60KS3P0B

The SV60KS3P0B SmartOnline® SV Series 60kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems. The SV60KS3P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and three 20kVA SV20PM power modules. It comes fully configured for 60kVA total capacity or 40kVA with enhanced N+1 protection. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available from Tripp Lite for extended runtime. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 98% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. Features 60kVA 54kW 3-Phase Small-Chassis UPS System Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring Dual hardwire input design enables operation from up to 2 power sources Network-grade sine-wave AC output with 1% output voltage regulation and less than 2% output total harmonic distortion Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards High 0.9 power factor offers higher kW output than lower-rated competing legacy designs Pre-Installed WEBCARDLX Network Interface Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH Supports 10/100 Mbps auto-sensing for communication with an Ethernet network Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status No Java required Modular, Scalable Design for Maximum Flexibility Modular configuration with hot-swappable power and battery modules enables easy, fast maintenance with zero downtime Comes fully configured for 60kVA total capacity or 40kVA with N+1 fault tolerance Supports external ±120VDC battery options for extended runtimes Optional Economy Mode Up to 98% efficiency in optional economy mode to lower operating and cooling costs Wide Input/Narrow Output Voltage Operating Range Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology Provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity Automatic and Manual Bypass Options Keep connected equipment operational during routine maintenance or critical power module failure

DC System Voltage	120 V DC
Typical Battery Recharge Time	4.60 Hour
Status Indicators	Front Panel LCD Display: Complete operating status display Setting and selection options for all UPS functions Front panel LED indicators: Input (green) Bypass (amber) Inverter (green) Battery (red) Alarm (red)
Serial Port	Yes
EPO Port	Yes
Thermal Dissipation	5340.63 W
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	3280.84 ft
Storage Relative Humidity	0% - 95%
Storage Temperature	5°F (-15°C) - 140°F (60°C)
Sound Emission (A-Weighted)	73 dB(A)
Product Type	Double Conversion Online UPS
Manufacturer Part Number	SV60KS3P0B
Manufacturer Website Address	http://www.tripplite.com
Manufacturer	Tripp Lite by Eaton
Product Model	SV60KS3P0B
Product Name	SmartOnline SV60KS3P0B 60kVA Tower UPS
Product Line	SmartOnline
Product Series	SV
Brand Name	Tripp Lite
Network Management	SNMP/HTTP Remote Monitoring
Alarm	UPS Alarm Power Off Power On Battery Mode Low Battery UPS Fault
Package Contents	SmartOnline SV60KS3P0B 60kVA Tower UPS Pre-installed WEBCARDLX Network Interface 3 x SV20PM 20kVA Power Module (Shipped Separately) Owner's Manual DB9 Cable
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS
Weight (Approximate)	800 lb
Form Factor	Tower
Height	58.1"
Width	23.6"
Depth	43.3"
Input Voltage	120 V AC 127 V AC 208 V AC 220 V AC
Output Voltage	120 V AC 208 V AC 127 V AC 220 V AC
Load Capacity	60 kVA
Surge Energy Rating	2496 J
Waveform Type	Pure Sine Wave
Output Frequency	60 Hz
Input Frequency	70 Hz
Application/Usage	Critical IT System
Plug/Connector Type	Hardwired
Phase	Three Phase
Receptacle Type	Hardwire (3P + N + E)
EMI/RFI Noise Filter	Yes
AVR	Yes
Energy Saving	Green Energy-Saving
Transfer Time	0 ns
Limited Warranty	1 Year
