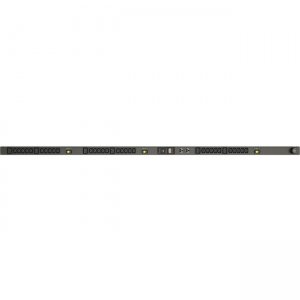

Geist 38-Outlets PDU I10088 MN01D4W1-38MP19-3TL21A0A10-S

The I10088 provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology, I10088 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology, users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module, without causing any interruption.

Product Type	PDU
Manufacturer Part Number	I10088
Manufacturer Website Address	http://www.vertiv.com/
Manufacturer	Vertiv
Product Model	MN01D4W1-38MP19-3TL21A0A10-S
Product Name	MN01D4W1-38MP19-3TL21A0A10-S 38-Outlets PDU
Brand Name	Geist
Package Contents	MN01D4W1-38MP19-3TL21A0A10-S 38-Outlets PDU Vertical Mounting Bracket Kit
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	RoHS
Length	72"
Mount Type	Rack-mountable
Rack Height	0U
Width	2"
Depth	2"
Mounting Orientation	Vertical
Input Voltage	120 V AC 230 V AC
Output Voltage	208 V AC
Input Current	30 A
Input Voltage Range	120 V AC - 208 V AC
Power Rating (Watt)	8600 W
Protection Type	Overcurrent Protection
Plug/Connector Type	NEMA L21-30P
Phase	Three Phase
Receptacle Type	IEC 60320 C13 IEC 60320 C19 NEMA 5-20R
PDU Type	Metered
Receptacle Detail	30 x IEC 60320 C13 6 x IEC 60320 C19 2 x NEMA 5-20R
Plug/Connector Detail	1 x NEMA L21-30P
Limited Warranty	5 Year
