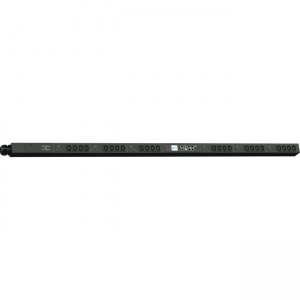

Tripp Lite 54-Outlet PDU PDU3V20D354A

Tripp Lite 54-Outlet PDU PDU3V20D354A
Price $445.56
Manufacturer: Tripp Lite
Mfg Number: PDU3V20D354A
SKU:
Condition: New
UPC: 037332190444
Accessories
Description
The PDU3V20D354A 8.6/12.6kW 3-Phase Vertical Power Distribution Unit(PDU) Outlet Strip is a required accessory option for Tripp Lite's PDU330AT6L21, PDU330AT6L15, PDU330AT6L2130, PDU330AT6L1530, PDU350AT6H50 and other 3-phase auto-transfer switch(ATS) PDUs that specify compatibility with this model. It's ideal for high-density equipment racks in data centers and server rooms.When used with 208V ATS models with a 35A input rating(such as PDU350AT6H50), the PDU3V20D354A supports up to 12.6kW total output with 20A maximum full balanced load per phase combination output bank(L1-L2, L2-L3, L3-L1). When used with 208V ATS models with a 24A input rating(such as PDU330AT6L21, PDU330AT6L2130, PDU330AT6L1530 or PDU330AT6L15), it supports up to 8.6kW total output with 13.9A maximum balanced load per phase combination output bank. The 42 C13 and 12 C19 single-phase outlets receive power from the connected ATS PDU. The outlets are interlaced to help you balance loads by spreading connections across the phase combinations(L1-L2, L2-L3, L3-L1) throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. The 2.5-foot power cord with 8-position plug connects directly to the PDU's rear receptacle. The PDU3V20D354A's rugged all-metal housing mounts in compatible racks in seconds with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.
Specifications
Product TypePDU
Brand NameTripp Lite
ManufacturerTripp Lite
Product ModelPDU3V20D354A
Product NamePDU3V20D354A 54-Outlet PDU
Manufacturer Part NumberPDU3V20D354A
Manufacturer Website Addresshttp://www.tripplite.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Height70"
Width2.2"
Depth2.2"
Rack Height0U
Form FactorVertical Rackmount
Weight (Approximate)9.26 lb
Power Rating12.60 kVA
Input Current35 A
Input Voltage200 V AC208 V AC220 V AC230 V AC240 V AC
Output Voltage200 V AC208 V AC220 V AC230 V AC240 V AC
Output Receptacles42 x IEC 60320 C1312 x IEC 60320 C19
Limited Warranty5 Year
