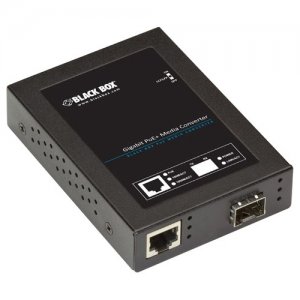

Black Box Gigabit PoE+ PSE Media Converter LPS535A-SFP

Acts as power sourcing equipment (PSE) on the copper side to provide up to 30 watts of power. Smart, plug-and-play installation. Add devices to your network without any reconfiguration. The copper port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation. Link Loss Forwarding provides instant notification of fiber segment link problems. Compatible with 802.3 aF/at standard PoE devices Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan, tilt, zoom) cameras, 802.11n access points, VoIP phones, and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper cable to the remote, Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter, which delivers 47~57 input power voltage. The Converter features advanced functions such as auto-negotiation, Auto-MDIX, Link Lost Forwarding, and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.

Product Type	Transceiver/Media Converter
Brand Name	Black Box
Manufacturer	Black Box Corporation
Product Model	LPS535A-SFP
Product Name	Gigabit PoE+ PSE Media Converter
Manufacturer Part Number	LPS535A-SFP
Manufacturer Website Address	http://www.blackbox.com
Packaged Quantity	1
Environmentally Friendly	Yes
Environmental Certification	WEEERoHS
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T1000Base-SX/LX
Number of Total Expansion Slots	1
Number of SFP Slots	1
Expansion Slot Type	SFP
USB	No
DVI	No
Network (RJ-45)	Yes
Management Port	No
Number of PoE+ (RJ-45) Ports	1
Total Number of Ports	1
Media Type Supported	Twisted PairOptical Fiber
Fiber Mode Supported	Multi-modeSingle-mode
Height	0.9"
Width	2.9"
Depth	4"
Form Factor	External
Weight (Approximate)	8.48 oz
Power Source	Power Supply
Limited Warranty	1 Year
