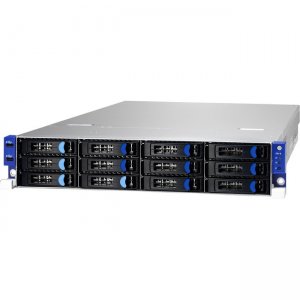

Tyan Transport SX B8026T70EV10E4HR TN70E-B8026

AMD Chip - 1 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 Controller - ASPEED AST2500 32 MB Graphic(s) - 12 3.5" Bay(s) - 2 2.5" Bay(s) - 16 SATA Interface(s) - Processor Support (EPYC) - Gigabit Ethernet - 3 USB 3.0 Port(s) - 2 x 770 W - 3 Year

Number of SATA Interfaces	16
Total Number of USB Ports	5
Number of USB 3.0 Ports	3
Controller Type	Serial ATA/600
RAID Supported	No
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500
Graphics Memory Capacity	32 MB
Product Type	Barebone System
Manufacturer Part Number	B8026T70EV10E4HR
Manufacturer Website Address	http://www.tyan.com
Packaged Quantity	1
Manufacturer	Tyan Computer Corp
Product Model	TN70E-B8026
Product Name	Transport SX TN70E-B8026
Product Line	Transport SX
Brand Name	Tyan
Number of Internal 2.5" Bays	2
Number of Total Expansion Bays	14
Number of 3.5" Bays	12
Number of Total Expansion Slots	6
Number of PCI Express x8 Slots	6
Maximum Memory Supported	1 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Number of Total Memory Slots	16
Package Contents	Transport SX TN70E-B8026 1 x Quick Installation Guide 1 x TYAN Device Driver CD
Environmentally Friendly	Yes
Environmental Certification	RoHS-6
Ethernet Technology	Gigabit Ethernet
Weight (Approximate)	41.89 lb
Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.7"
Depth	27.6"
Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	770 W
Limited Warranty	3 Year
Processor Supported	EPYC
Processor Socket	Socket SP3
Number of Processors Supported	1
Chipset Manufacturer	AMD
Operating System Supported	Windows Server 2016 Standard x64 Red Hat Enterprise linux 7.3 x64 Red Hat Enterprise linux 7.4 x64 Red Hat Enterprise linux 7.5 x64
